FIRECOM CR1-C1 SOZ1-U (AS+) 170/300V LSZH
FIRE & ALARM | FIRE RESISTANT CABLES

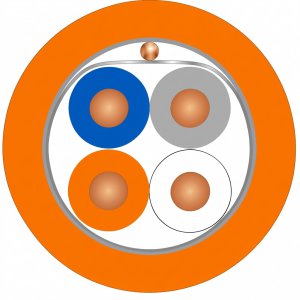

Construction
Conductor: Solid Bare Copper class 1 acc /. UNE-EN 60228
Insulation: EN 50363-1 - Silicone cross-linked rubber (SiR) type EI-2.
Identification: White and Blue
Identification:
Assembly: Concentrically assembled insulated conductors.
Protector: Polyeste tape.
Overall Shielding Al/Pet: Aluminium/Polyester Tape.
Overall Drain wire: Solid Bare Copper class 1 acc /. UNE-EN 60228
Outer sheath: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Orange
RoHS
Fire resistant
Halogen free
Solid Wire
Low smoke opacity
Low gas corrosiveness
Fire retardant
Flame retardantTechnical data / Regulations
Operating voltage: 170/300V
Test voltage: 1500 v
Operating temperature: -20... +70ºC
Standards:
(Construction) UNE-211025 - Cables with intrinsic resistance to fire and intended for use in emergency circuits.
(Insulation) EN 50363-1 - Silicone cross-linked rubber (SiR) type EI-2.
(Sheath) UNE-EN 50290-2-27 - Halogen-free compound type Z1.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Fire) UNE-EN 60754-2 (IEC 60754-2) - Low corrosivity of smoke.
(Fire) EN 50200, IEC 60331-2 (for Ø < 20mm) - Intrinsic resistance: PH120 (120 minutes at 840°C).
Applications
Shielded CR1-C1 cables, with PH120 intrinsic fire resistance, intended for safety circuits, such as: signaling, detection and alarm circuits, and circuits for evacuation and firefighting services.
Featuring special fire performance that combines low flame propagation and low heat release with very low emissions of smoke and hazardous gases.
The cable is design-compliant with CR1-C1 specifications according to NF C 32-070.
