SINGLE-CORE H07Z1-K (AS) 450/750V
ENERGY - LOW VOLTAGE | HALOGEN-FREE

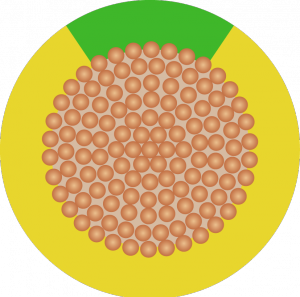

Construction
Conductor: Flexible stranded copper wire. Class 5 acc/. UNE-EN 60228.
Insulation: EN 50363-7 - Halogen-free compound TI-7.
Identification: To be defined when ordering
RoHS
CPR Compilant
Halogen free
Flexible cable
Low smoke opacity
Low gas corrosiveness
Flame retardant
CETechnical data / Regulations
CPR classification: Cca-s1b, d1, a1
Operating voltage: 450/750V
Test voltage: 2.500V 5min
Operating temperature: -15... +70ºC
Standards:
(Construction) UNE-EN 50525-3-11 - Flexible cables with lowsmoke emission and halogen-free thermoplastic insulation.
(Insulation) EN 50363-7 - Halogen-free compound TI-7.
(Fire) UNE-EN 50575 - CPR
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
Observations
Suitable for all applications requiring a safe behavior of the cable in the event of fire defined in the Low Voltage Regulation (REBT 2002) as:
ITC-BT-15 Uplinking facilities.
ITC-BT-20 Indoor installations.
ITC-BT-28 Installations in public premises.
ITC-BT-29 Installations in premises with risk of fire or explosion (properly channeled)
ITC-BT-30 Installations in premises with special characteristics.
Applications
Single-core wire insulated with a compound of halogen-free thermoplastic and a low smoke and corrosive gases emissions when subjected to the action of fire , for fixed installations in control or signalling circuits.and lighting.
