COAXIAL RG-59 B/U LSZH Type

COAXIAL CABLES  |  COAXIALS 75 Ω

COAXIAL RG-59 B/U LSZH Type

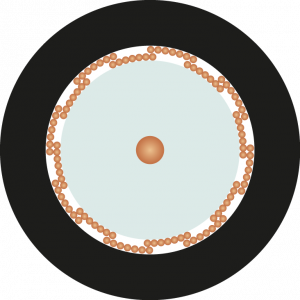

Construction

Conductor: Bare Copper Ø 0.60
Insulation: UNE-EN 50290-2-23 - Polyethylene for insulation.
Identification: Natural
Braid Shielding: Polished Cu braid lampshade.
Shielding coverage: 95%
Outer cover: UNE-EN 50290-2-27 - Halogen-free Z1 compound.
Color: Black

COAXIAL RG-59 B/U LSZH Type
RoHS RoHS
CPR Compilant CPR Compilant
Low halogen Low halogen
Low gas corrosiveness Low gas corrosiveness
Fire retardant Fire retardant
Flame retardant Flame retardant
CE CE

Technical data / Regulations.

CPR classification: Eca
Operating voltage: 100/100V
Test voltage: 1000 V
Operating temperature: -15... +70ºC
Standards:
(Construction) UNE-EN 50117-1 - Coaxial cables for use in analogue and digital systems.
(Insulation) UNE-EN 50290-2-23 - Polyethylene for insulation.
(Sheath) UNE-EN 50290-2-27 - Halogen-free Z1 compound.
(Fire) UNE-EN 50575 - CPR
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
